renderings, installation drawings, and fabrication drawings for patrick shearn w/ theindustry.
theindustry approached patrick shearn to create large clouds for an interactive sound / light installation at the disney concert hall in los angeles. the piece had to be installed in an atrium with very irregular construction and house a complex array of sound and lighting. i oversaw a 3d point scan, made concept renderings and installation drawings, consulting with engineers and riggers. the project was installed in under a day and was in the space for about a year.

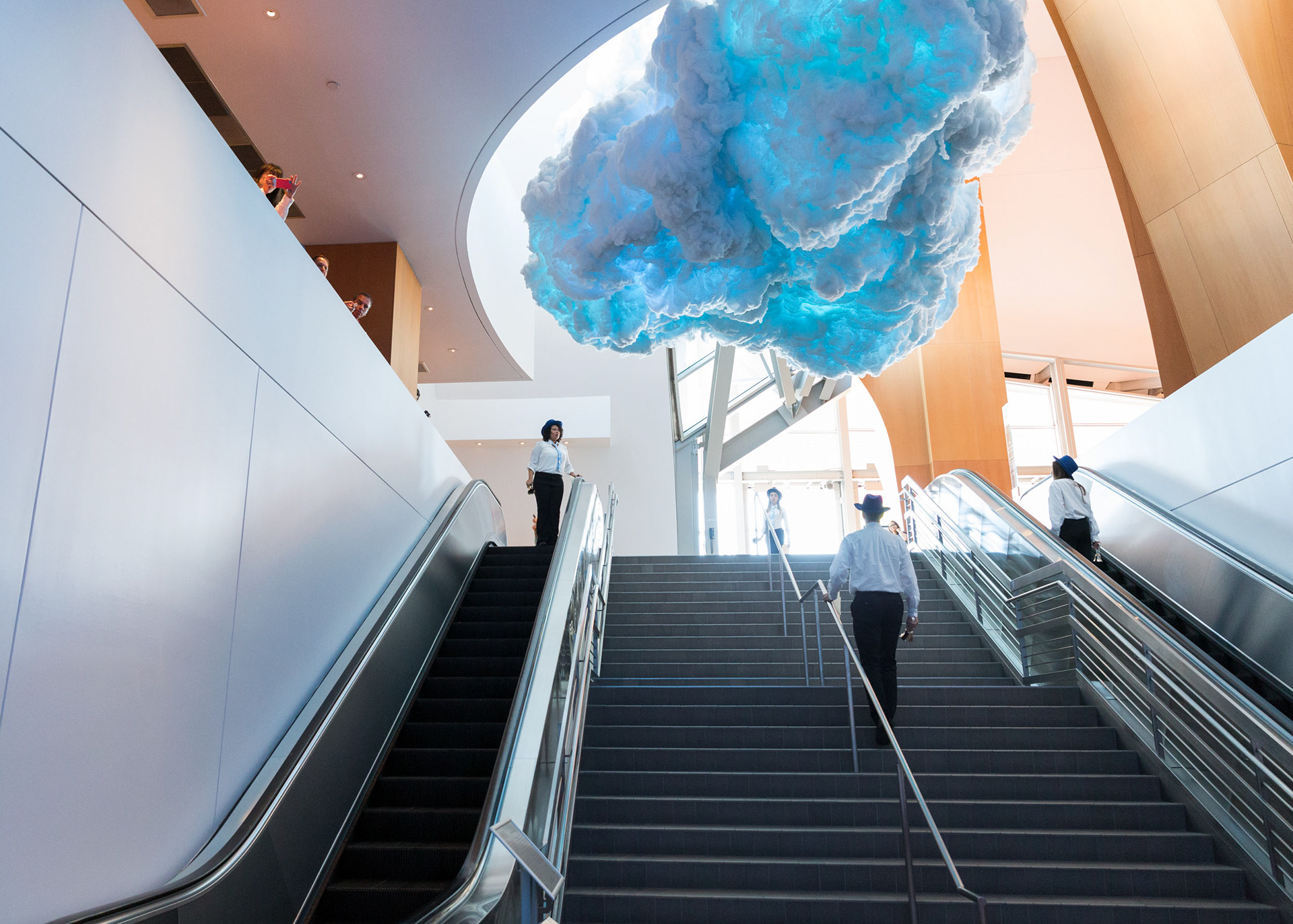

hero view
hero view

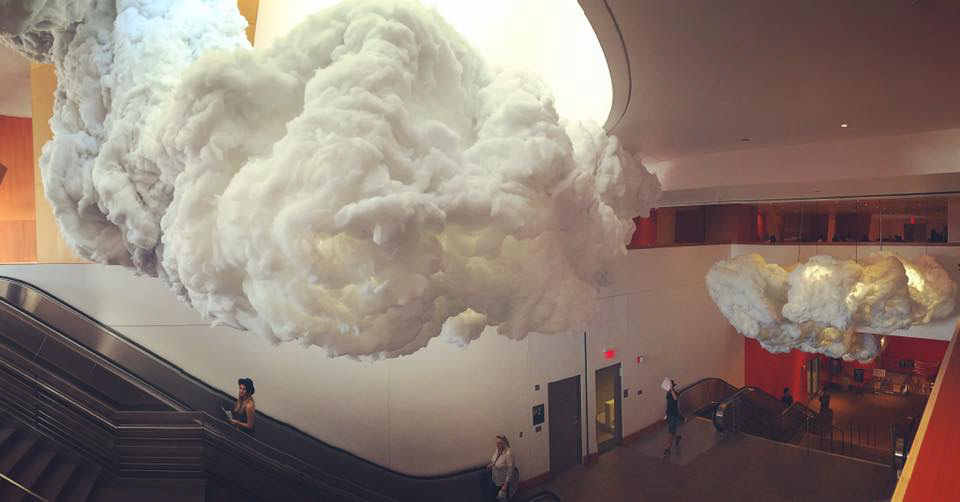

from below
from below

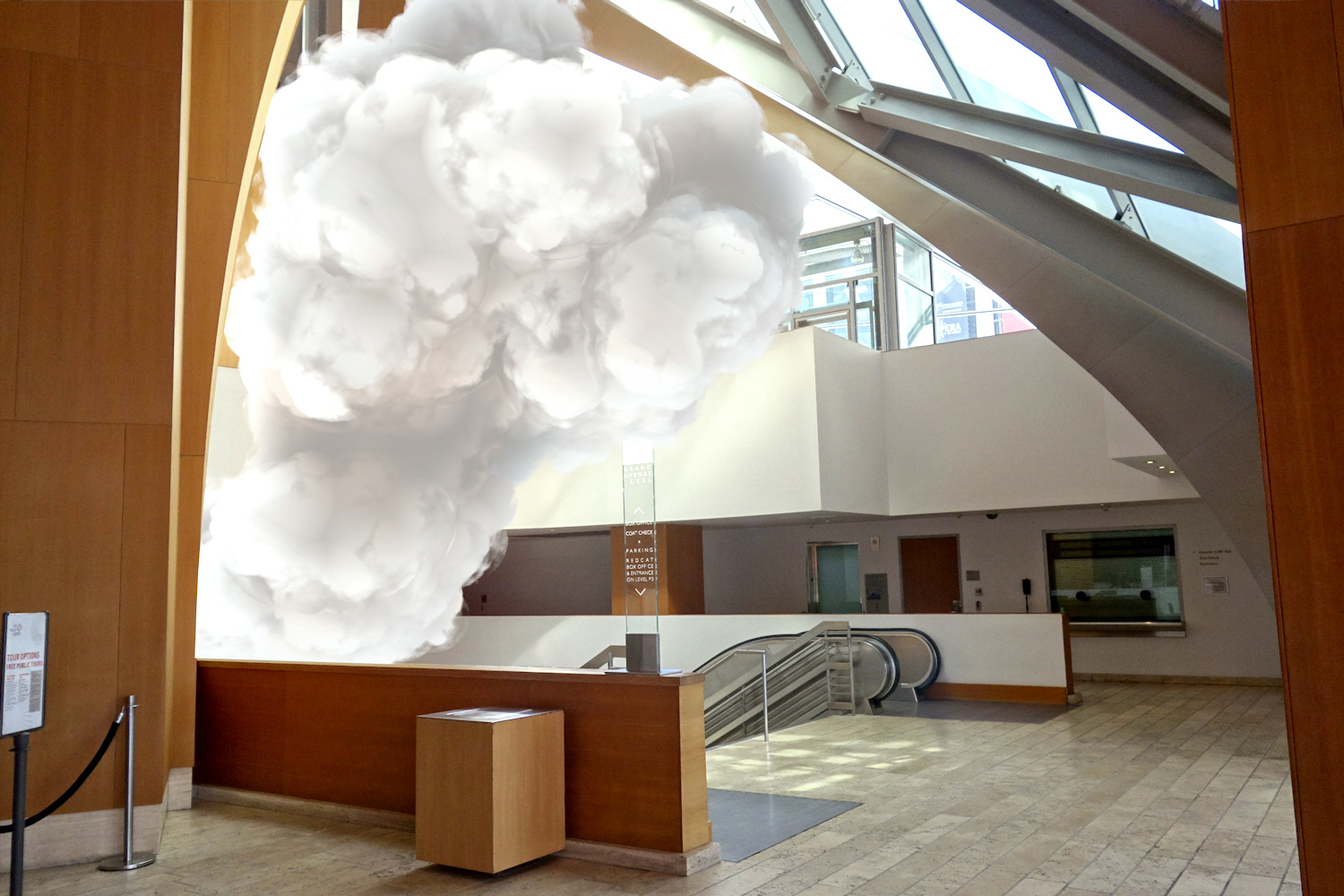

render
render
render above
render above

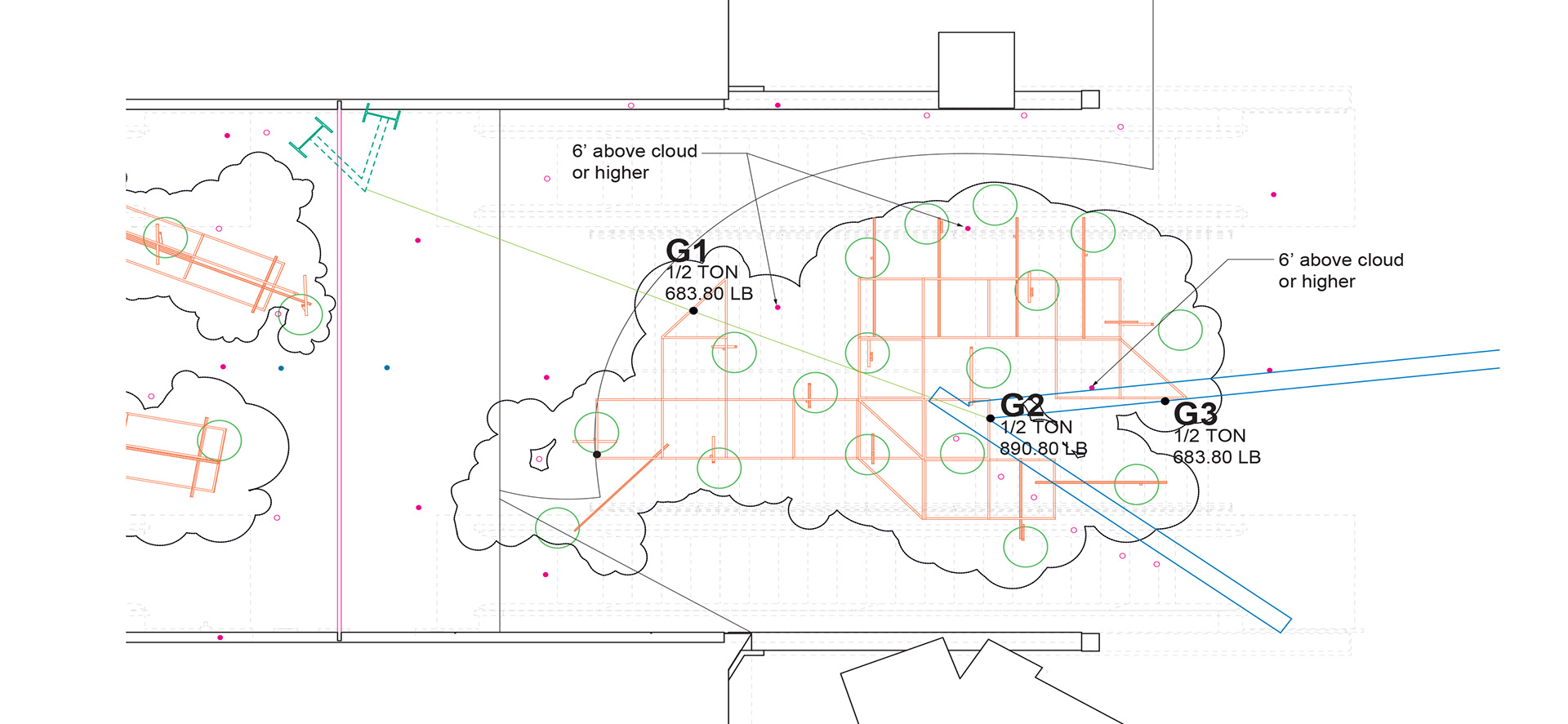

escalator area plan
escalator area plan

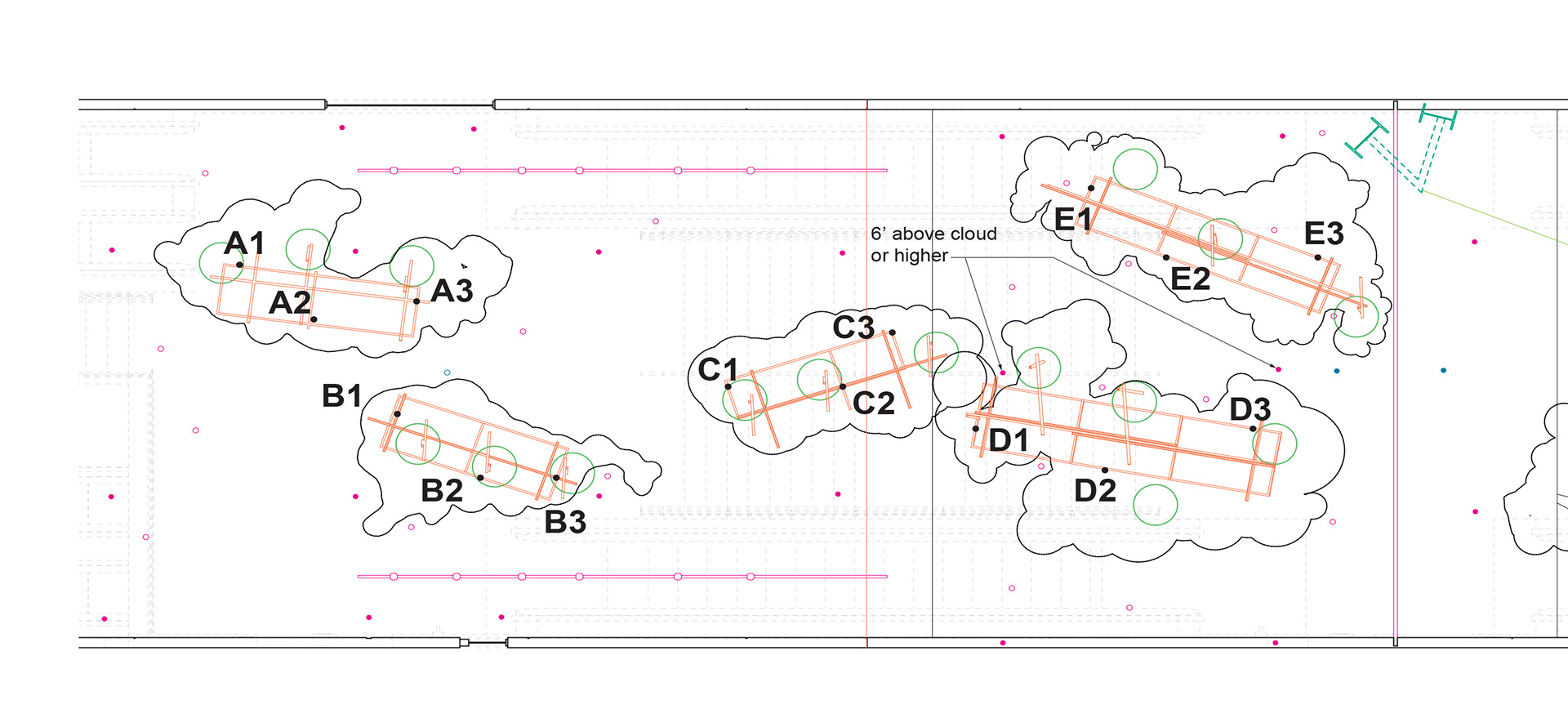

atrium plan
atrium plan

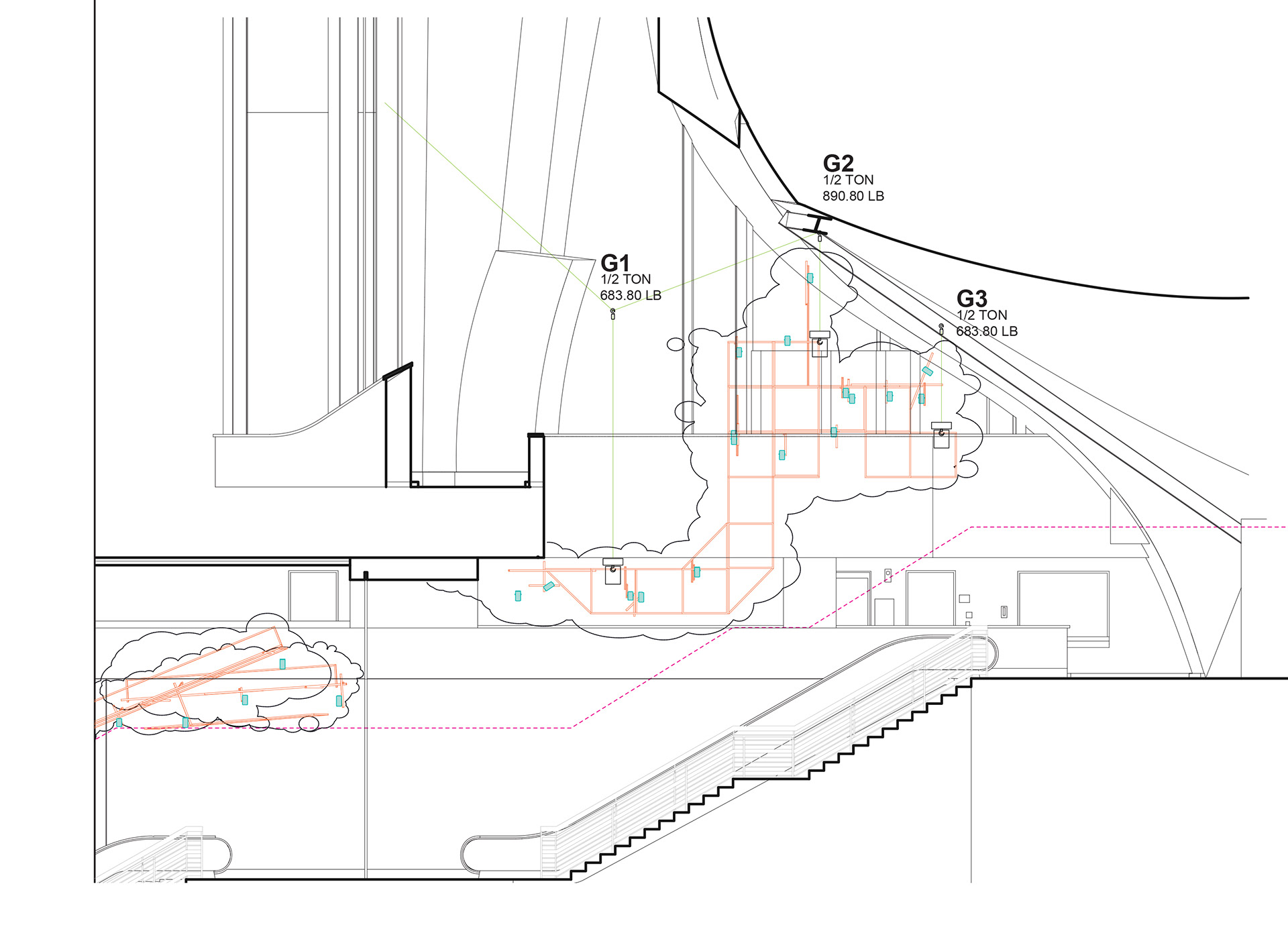

section
section
frame axon
frame axon
